Michael Karpers skrev:
Really interesting and good work Magnus!
Looks like something for Bettan!
What's the weight?

1.Of each sensor.
2. Of the sensor mounting
3. Of the cpu-box?

Brg/Michael Karpers


That's serious weight saving thinking The right way to do racing thumbs up

Well... I don't know. But for comparison the battery is the heaviest part, it's said to be 10,5g. But it's for 24 hours run time so you either use a much smaller one or preferably don't use a battery at all and instead run the kit from the cars power directly.

An estimate is that the cpu board + the two sensors with daugther boards + the 12V power board + power switch is around 20g excluding 3D printed casing. The red test printed whole-kit enclosure is roughly 20g too but hey, print it with carbon/nylon and it's way lighter. The carbon/nylon mix costs peanuts in those volumes.







PS:
Since you have CAN bus and probably don't have any logging done using Bluetooth BLE you are probably better off with CAN bus sensors, IZZE Racing have them without casings for a very reasonable price. This kit I've put together is more for us Racechrono / Harrys Laptimer mobile phone race track amateurs


_________________
Magnus Thomé
RejsaRubberTrac
Meny       Upp       Tillbaka
Visa användarens profil Skicka personligt meddelande Skicka e-post
Magnus Thomé
Stockholm



Forumägare
Forumägare

Här sen Nov 2002
Inlägg: 31921
Tipsa Facebook   Inlägg  04 Mar 2019 15:22     Citera

Thanks to Jon for printing out this test!




_________________
Magnus Thomé
RejsaRubberTrac
Meny       Upp       Tillbaka
Visa användarens profil Skicka personligt meddelande Skicka e-post
Magnus Thomé
Stockholm



Forumägare
Forumägare

Här sen Nov 2002
Inlägg: 31921
Tipsa Facebook   Inlägg  06 Mar 2019 09:47     Citera

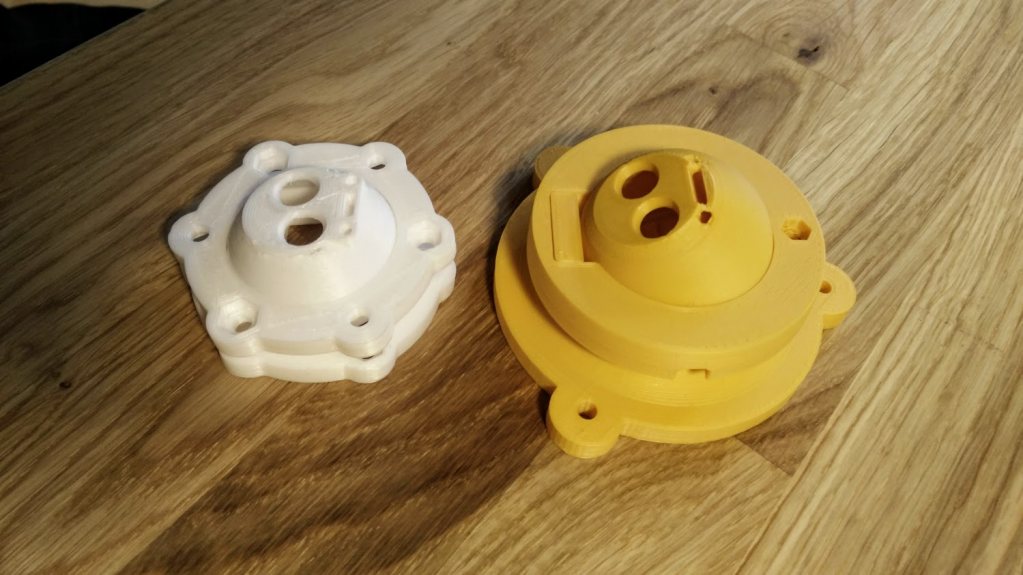

Oh dear, it shrunk!
