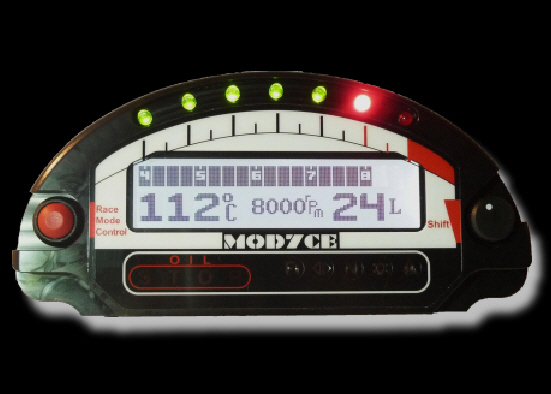

Race/Rally-display MOD7RR. (Demo-ex i kartong).
Se nedan för funktionsbeskrivning.
Pris 3000:-
Kontakt:
martin@fr-autosport.se
"
Bargraph with programmable scale : last 5000 rpm are displayed on screen.
Maxi 10000 rpm with 250 rpm accuracy.
Digital value with 100 rpm accuracy.
Maximum recorded and displayed after engine has been stopped.
To be connected on the original dashboard harness.
Possible connection directly on the primary of a ignition coil
5 green leds + 2 red leds.
Sequential = no flashing, each led is turning on and remains on as soon as their programmable rpm is reached.
Each led can be individually program from 5000 to 10000 rpm with 100 rpm accuracy.
Shift light can be enable / disable in one pulse on button when engine is running.
Led luminosity control with potentiometer
Digital display from 0 to 135°C with 2°C accuracy.
Maximum temperature recorded and displayed after engine has been stopped.
Programmable alert led from 70 to 130°CNTS sensor with connector and 2,20m lenght harness supplied
Designed to be interfaced with Peugeot, Citroën, Renault, VW, Fiat, original car sensors.
16 programming steps from 0 to 60 liters by 4 liters
Digital display up to 250km/h with 1 km/h accuracy.
Maximum speed displayed after the engine has been turned off
sensor with 2m lenght harness and magnet supplied.
Programmable wheel circumference value.
Total Distance up to 99999km.
Day Trip up to 999,9km with manual reset.
Running duration up to 255h59'
When voltage is below 12v or above 15v.
Special logo displayed on lcd screen during 30s every minute
Dimensions : 180 x 85 x 30 mmWide 4" Wide 100 x 25mm with white led backlight
Total weight with harness : approx. 500grs
Supplied with harness, sensors (temperature & speed), silenbloc fixations and instructions notes
"
